GL1

NEW!

SBZ/MBZ - Bronze GL1 with ES - Extended Site Arm

GL1 dimensional drawing with ES - Extended Site Arm (top), HT - Horizontal Tenon (top-middle), KM - Knuckle Mount (bottom-middle), WP - Wall Pack (bottom)

SBZ/MBZ - Bronze GL1 with HT - Horizontal Tenon

SBZ/MBZ - Bronze GL1 with KM - Knuckle Mount

SBZ/MBZ - Bronze GL1 with WP - Wall Pack

3,000 to 16,000 lumens - Designed + Assembled in the U.S.A.!

EnergyLite’s GridLite family integrates the latest advancements in LED technology, driving the trend towards smaller and lighter site and area light fixtures. This allows for poles with lower EPA ratings, offering even more savings. The GL1 ranges from 3,000 lumens/20W to 16,000 lumens/130W and up to 170 lm/W.

Replaces small and mid-sized area HID fixtures up to 400W.

120-277V
Type II Roadway Medium, Type III Roadway Medium, Type III Area Medium, Type IV Wide Short, Type V Square Short and Type V Square Medium distribution options
Dim-to-off 0-10V dimming standard
Integral photocells, motions sensors, and Casambi wireless bluetooth integration
IP66 rated optical and electrical chambers

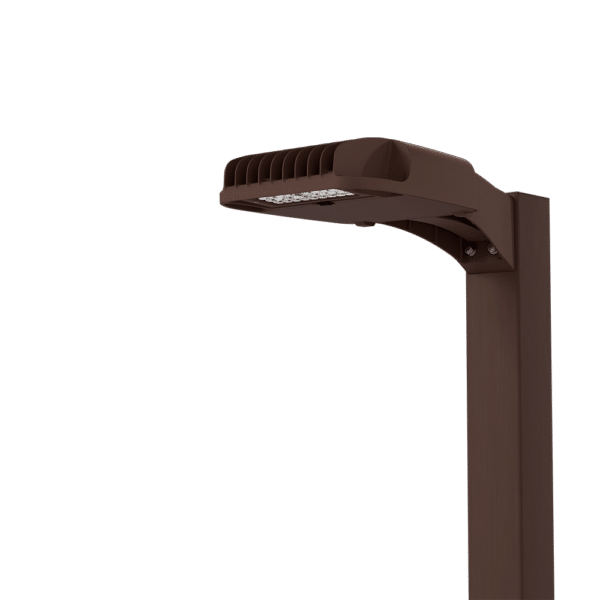

Site arm, knuckle, horizontal tenon, wall pack and extended site arm (for retrofitting) mounting options available
All mounting options allow for multiple fixture installations at 90°
Round pole and surface mount conduit box adapters available for field installation
