BL1

NEW!

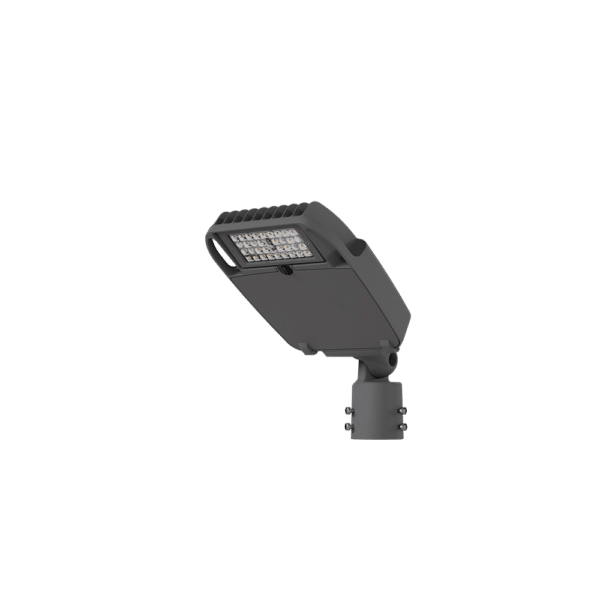

SGY/MGY - Grey BL1 with KM - knuckle mount

BL1 dimensional drawing with KM - knuckle mount (top, middle) and TM - trunnion mount (bottom)

SGY/MGY - Grey BL1 with KMS - knuckle mount side wiring

SGY/MGY - Grey BL1 with TM - trunnion mount

3,000 to 16,000 lumens - Designed + Assembled in the U.S.A.!

EnergyLites BroadLite family integrates the latest advancements in LED technology, driving the trend towards smaller and lighter site and area light fixtures. This allows for poles with lower EPA ratings, offering even more savings. The BL1 ranges from 3,000 lumens/20W to 16,000 lumens/130W and up to 170 lm/W.

Replaces small and mid-sized area HID fixtures up to 400W.

120-277V
NEMA 6×6 and NEMA 7×5 distributions
Multiple field-installed shielding options available
Dim-to-off 0-10V dimming standard
Integral photocells, motions sensors, and Casambi wireless bluetooth integration
IP66 rated optical and electrical chambers
Knuckle and trunnion mount options
All mounting options allow for multiple fixture installations at 90°
