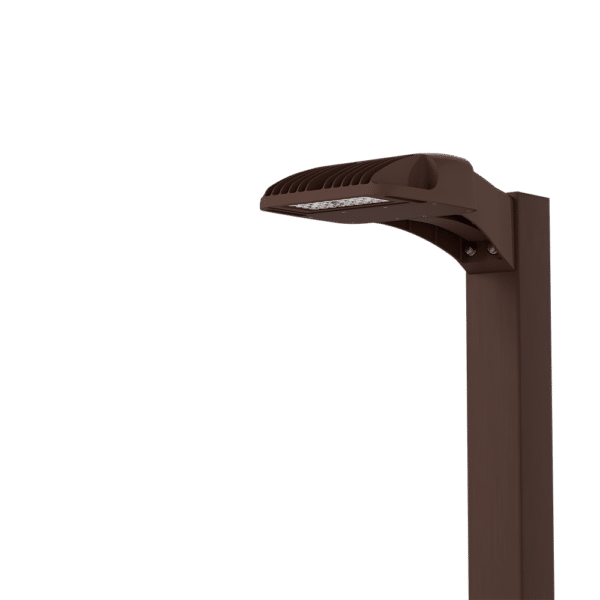

SBZ/MBZ - Bronze GL1c with SA - Site Arm
SBZ/MBZ - Bronze GL1c with ES - Extended Site Arm
SBZ/MBZ - Bronze GL1c with HT - Horizontal Tenon
SBZ/MBZ - Bronze GL1c with KM - Knuckle Mount
SBZ/MBZ - Bronze GL1c with WP - Wall Pack
GL1c dimensional drawing with SA - Site Arm (top), ES - Extended Site Arm (middle) and KM - Knuckle Mount (bottom)
GL1c dimensional drawing with WP - Wall Pack (top), WP-SMBC - Wall Pack with Surface Mount Conduit Box (middle) and HT - Horizontal Tenon (bottom)
SBZ/MBZ - Bronze GL1c with SA - Site Arm
SBZ/MBZ - Bronze GL1c with ES - Extended Site Arm
SBZ/MBZ - Bronze GL1c with HT - Horizontal Tenon
SBZ/MBZ - Bronze GL1c with KM - Knuckle Mount
SBZ/MBZ - Bronze GL1c with WP - Wall Pack
GL1c dimensional drawing with SA - Site Arm (top), ES - Extended Site Arm (middle) and KM - Knuckle Mount (bottom)
GL1c dimensional drawing with WP - Wall Pack (top), WP-SMBC - Wall Pack with Surface Mount Conduit Box (middle) and HT - Horizontal Tenon (bottom)

GL1c

3,000 to 16,000 lumen Site Lighting

EnergyLite’s GridLite family integrates the latest advancements in LED technology, driving the trend towards smaller and lighter site and area light fixtures with integral controls. This allows for poles with lower EPA ratings, offering even more savings. The GL1c, with it’s excellent performance, ranges from 3,000 lumens/20W to 16,000 lumens/120W and up to 164 lm/W.

Replaces small and lower mid-sized site light HID fixtures up to 250W.

  • 120-277V
  • Type II Medium, Type III Medium, Type IV Short, Type V Square distributions
  • Multiple field-installed shielding options available
  • Dim-to-off 0-10V dimming standard
  • Integral photocells, motions sensors, and Casambi wireless bluetooth integration
  • IP66 rated optical and electrical chambers
  • Site arm, knuckle, horizontal tenon, wall pack and extended site arm (for retrofitting) mounting options available
  • All mounting options allow for multiple fixture installations at 90°
  • Round pole and surface mount conduit box adapters available for field installation
Finish Options
Product Sheet IES Files Installation Instructions Dimming Information Warranty Information techhelp@solais.com clientservice@solais.com
